Features and Benefits

Features Compliant with PCI Express Base Specification 1.0a

Supports 2 x UART serial port

Built-in 16C450/550 compatible UART

On chip 256 byte FIFOs in transmit and receive path of each serial port

Serial data transfer rate up to 230400bps

Supports Standard Parallel Port (SPP), Enhanced

Parallel (EPP) & Enhanced Capability Port (ECP)

Parallel data transfer rate up to 1.5Mbps

Bus PCI-Express x1

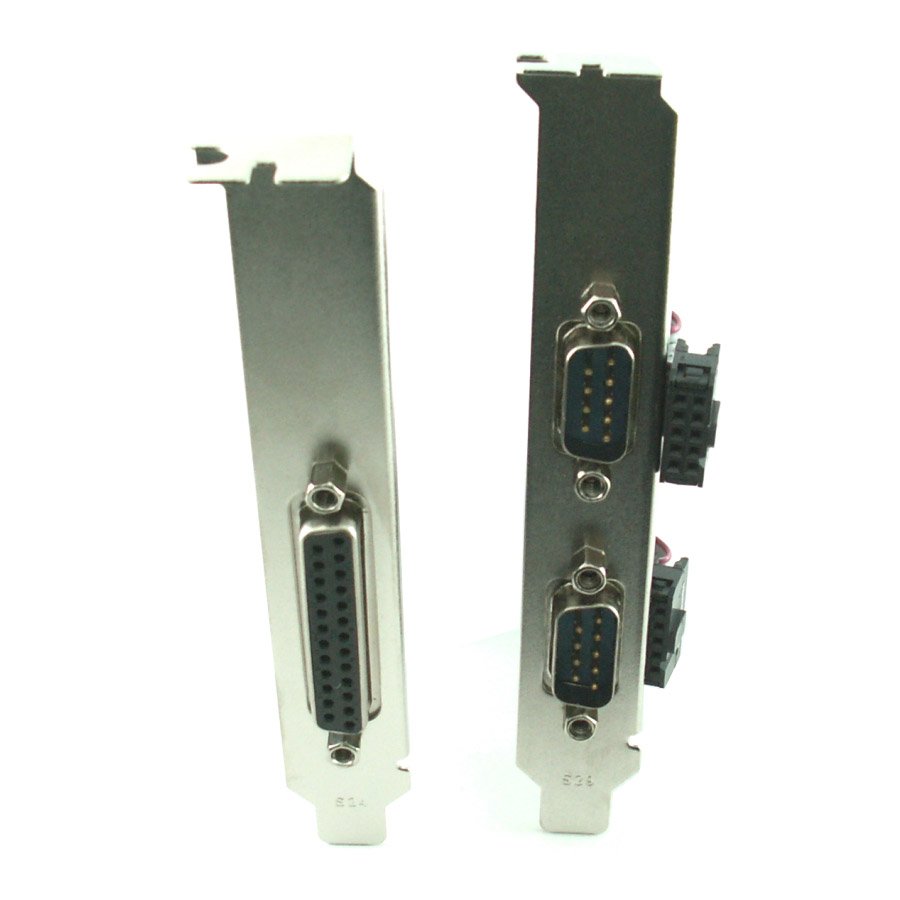

Connectors 2 x DB9 male serial connectors

1 x DB25 female parallel connector

System Requirements

Windows® 2000 / 2003 / XP/ 32/64 bit, Vista 32/64 bit, Win 7&8 32bit/64bit, WIN 10 32Bit/64Bit

One available PCI Express slot

Package Contents

1 x PCIe 2S1P Card

1 x DB25 parallel port cable

1 x Driver CD

1 x User’s Manual

Hardware Installation

1. Turn Off the power to your computer.

2. Unplug the power cord and remove your computer’s cover.

3. Remove the slot bracket from an available PCIe slot.

4. To install the card, carefully align the card’s bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.

5. Replace the slot bracket’s holding screw to secure the card.

6. Replace the computer cover and reconnect the power cord.
