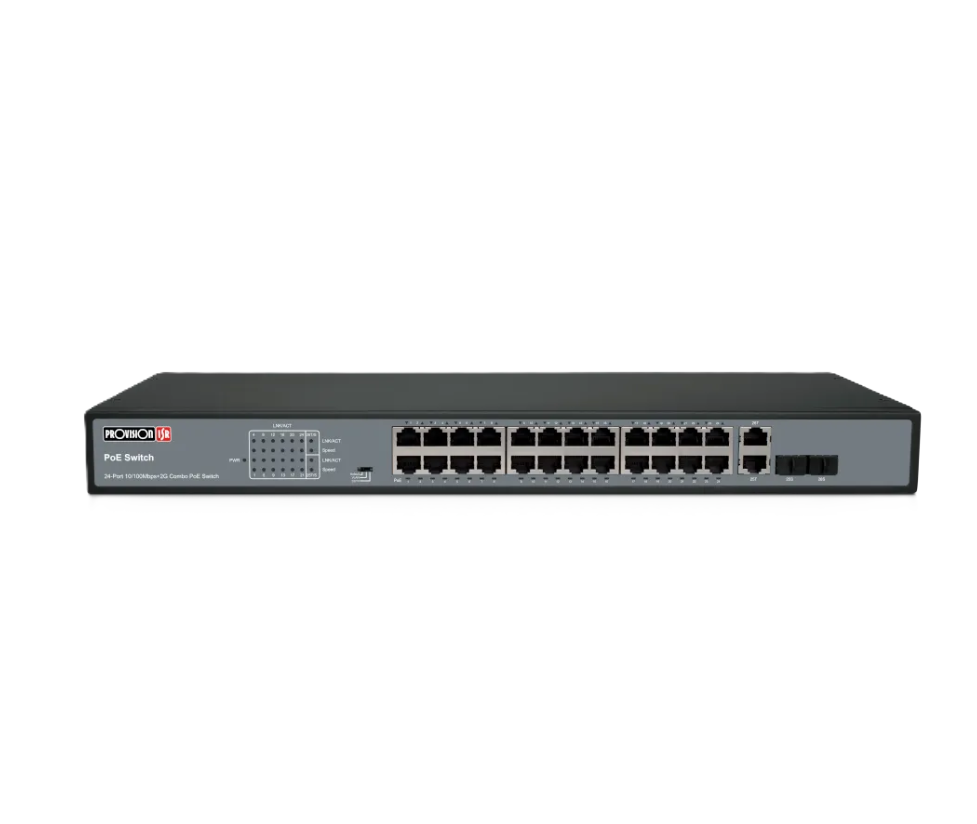

מתג Provision 24 PORT 100MB POE Switch 2XUplink 1GB 370W Total

Interface

Downlink Ports
24*10/100Mbps RJ45 port
Uplink Ports
2 x 10/100/1000Mbps TP/SFP Combo port
SFP Ports
2 x 10/100/1000Mbps

PoE

PoE Ports
24
Ethernet Standards
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at
PoE Total Power

370W

Average Power Per Channel

15.4W

Maximum Power Per Channel

32W

Data Processing

Backbone Bandwidth

8.8Gbps

Buffer Size

4Mb

MAC Address Table
16K
VLAN
2 Auto Modes (VLAN / CCTV Modes)

Network Media

EIA/TIA-568

100Ω STP (Maximum 100m)

10BASE-T

10BASE-T: UTP category 3,4,5 cable (≤100m)

100BASE-TX

100BASE-TX: UTP category 5,5e cable (≤100m)

1000BASE-T

1000BASE-T: UTP category 5e,6 cable (≤100m)

1000BASE-X

N/A

Special

CCTV Mode
Selectable Standard/CCTV Mode
Surge Protector
Different mode±2KV common mode±4KV
Wall Bracket
No
Rack Bracket
yes
K-Slot (Anti Theft)
No

Power

Status Monitor
Yes
Power Supply

100-240VAC

Others

Power Consumption

PoE On: 370W Max. / PoE Off: 20W Max.

Fan

Yes

Dimensions

440*207*44mm

Weight

3.1Kg

Operating Temperature

-40 °C ~ 70 °C (-40 °F ~158°F )

PROVISION

מתג Provision 24 PORT 100MB POE Switch 2XUplink 1GB 370W Total

מק״ט יצרןPOES-24370CL+2G+2SFP

תמיכה טכנית 09-7601346 פיקוק

POES-24370C+2COMBO

זמין במלאיMיבואן רשמימשלוח מהיר

₪1,890

כולל מע״מ

מפרט המוצר

קצב העברת נתונים10/100
חיבורים - Ports24
POE24 פורטים
מנוהללא
Rackmountכן
הספק מקסימלי בW370
תקופת אחריותשנתיים

פרטים נוספים

PoES-24370C+2Combo
• PoE Ports: 24
• Downlink Ports: 24
• Uplink Ports: 2
• SFP Ports: 2 (Overrides RJ45 Uplink Ports)
• Download Speed: 10/100Mbps
• Uplink Speed: 10/100/1000Mbps
• Total Power: 370W
• Maximum Power Per Channel: 32W
• Backbone Bandwidth: 8.8Gbps
• Buffer Size: 4Mb
• MAC Address Table: 16K
• CCTV Mode: Selectable Standard/CCTV Mode
• VLAN: Disabled/Auto
• Advanced Status Monitor
• Keep Alive Feature
• Power Supply: 100-240VAC
• Power Consumption: PoE On: 370W Max. / PoE Off: 20W Max.
• Dimensions: 440*207*44mm
• Weight: 3.1Kg

Interface

Downlink Ports
24*10/100Mbps RJ45 port
Uplink Ports
2 x 10/100/1000Mbps TP/SFP Combo port
SFP Ports
2 x 10/100/1000Mbps

PoE

PoE Ports
24
Ethernet Standards
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at
PoE Total Power

370W

Average Power Per Channel

15.4W

Maximum Power Per Channel

32W

Data Processing

Backbone Bandwidth

8.8Gbps

Buffer Size

4Mb

MAC Address Table
16K
VLAN
2 Auto Modes (VLAN / CCTV Modes)

Network Media

EIA/TIA-568

100Ω STP (Maximum 100m)

10BASE-T

10BASE-T: UTP category 3,4,5 cable (≤100m)

100BASE-TX

100BASE-TX: UTP category 5,5e cable (≤100m)

1000BASE-T

1000BASE-T: UTP category 5e,6 cable (≤100m)

1000BASE-X

N/A

Special

CCTV Mode
Selectable Standard/CCTV Mode
Surge Protector
Different mode±2KV common mode±4KV
Wall Bracket
No
Rack Bracket
yes
K-Slot (Anti Theft)
No

Power

Status Monitor
Yes
Power Supply

100-240VAC

Others

Power Consumption

PoE On: 370W Max. / PoE Off: 20W Max.

Fan

Yes

Dimensions

440*207*44mm

Weight

3.1Kg

Operating Temperature

-40 °C ~ 70 °C (-40 °F ~158°F )
